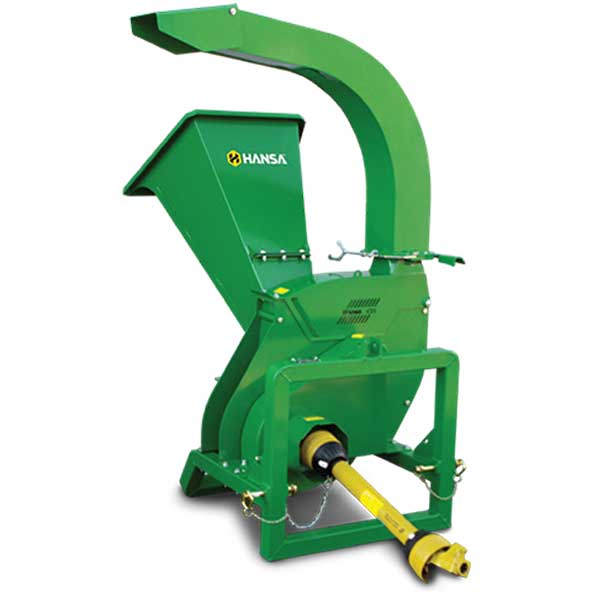

Hansa C21 Brush Chipper PTO Driven

Hansa C21 Brush Chipper PTO Driven

Because of its compact design the Hansa C21 is relatively light, easily manoeuvred and can be operated in areas with restricted space and access.

This disc type chipper is of solid construction which boasts a chipping capacity of 100 to 130 mm diameter branches, depending on the type of wood. The chipper will process branch and brushy material, wood offcuts and other vegetation material. The Hansa C21 has a large inlet chute for feeding in bigger bundles of brushy and twiggy materials, vines and larger branches, therefore no precutting is necessary.

The machine has a very efficient self feeding action. This 'self-feeding' action is due to the design of the rotor and the blade set-up, resulting in a user friendly machine easy on the operator. The inertia generated by the large rotor disk creates enough momentum to keep cutting as well as giving the machine enough draught to discharge the mulch up to 10m away (or close to the operating area by adjusting the deflector on the outlet chute). Having a discharge height of 1.8m makes the Hansa C21 ideal for discharging onto a trailer, ute deck or truck, eliminating the need for any double handling of mulch.

By pivoting open the outlet chute this allows full access to the inside of the machine. This makes changing blades for sharpening simple and requires little effort. As with all of the larger Hansa chippers, adjustable blades eliminate the need to adjust the anvil after sharpening, giving the ability to adjust each blade individually to the anvil for optimal clearance. The blades will last anywhere up to 30 hours use before requiring sharpening, depending on the type of material being mulched.

 The C21 is also available as a road towable unit.

Ideal for contractors, parks & reserves, local bodies, orchards, lifestyle blocks and farms.

Features

• Self-feeding cutting action.
• Tractor mounted PTO driven - operates at PTO speed of 540RPM.
• Suitable for any tractor from 20 - 50HP.
• Driveshaft is fitted with shear pin.
• Large infeed chute allows full branches to flow into the machine. No pre-cutting necessary.
• Rotating outlet chute for 270° discharge with deflector. The positive locking system requires no tools.
• Triple belt drive with belt tensioner for smooth running and protection against shock load.
• Easy access to the knives and the inside of the housing, just by swinging back the outlet chute.
• Quality hyperloc powder-coated finish.
• 24 month warranty.
• New Zealand made for New Zealand conditions.

Specifications

*depending on the type and hardness of the wood
When you compare different makes of machines, be careful, as some manufacturers rate their capacity by the size of the opening, which is misleading. Through a 100mm opening you can practically feed only a 70mm branch.

For more information or advice, please contact us
