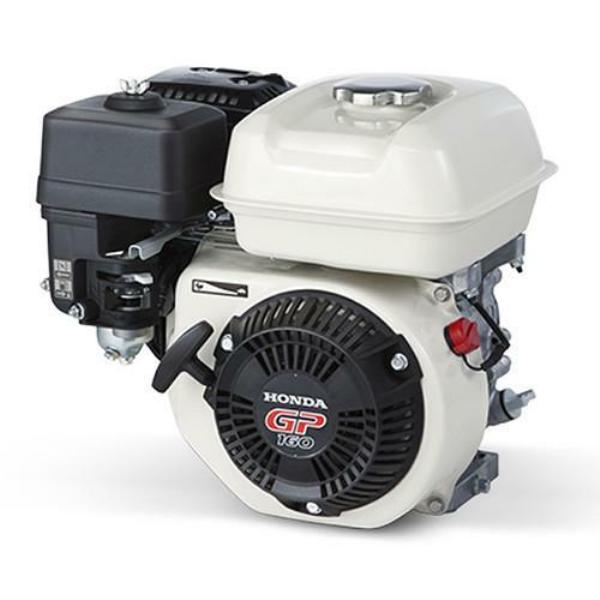

Honda GP160 Horizontal Engine
Genuine HONDA GP160 horizontal shaft premium domestic petrol engine. OHV technology for greater fuel economy and lower emissions.
Ideal for domestic and semi-professional use on pumps, concrete mixers, rotary hoes and many other general purpose uses.
SPECIFICATIONS
| MODEL |
GP160 |
| TYPE |
4-stroke, overhead valve, single-cylinder, horizontal shaft |
| BORE & STROKE |
68 x 45 mm |
| DISPLACEMENT |
163 cm3 |
| COMPRESSION RATIO |
8.5:1 |
| NET POWER |
3.6kW (4.8HP) at 3,600 rpm |
| CONTINUOUS RATED POWER |
2.9kW (3.9HP) at 3,600 rpm |
| MAXIMUM NET TORQUE |
10.3 Nm at 2,500 rpm |
| IGNITION SYSTEM |
Transistorised magneto ignition |
| STARTING SYSTEM |
Recoil |
| COOLING SYSTEM |
Forced-Air |
| PTO SHAFT ROTATION |
Counter-clockwise (from P.T.O. side) |
| FUEL CONSUMPTION AT RATED POWER |
1.4 L/h at 3,600 rpm |
| RECOMMENDED FUEL |
Unleaded |
| LUBRICATION SYSTEM |
Splash |
| RECOMMENDED OIL |
10W/30 API SG |
| OIL CAPACITY |
0.6l |
| FUEL TANK CAPACITY |
3.1l |
| DIMENSIONS |
314 x 363 x 335mm |
| DRY WEIGHT |
15.1kg |
